Some technical points :



Luminosity depends on the fibre’s length and is proportional to its cross-section, with fibre diameter ranging from 0.25 to 3 mm. Note that a fibre of 2 mm is 4 times brighter than a fibre of 1 mm.



The number of LEDs included in a driver can vary from 1 to 12 and the maximum cross-section contained by the connector (common end) is 10 mm. In order to increase the flux emitted, fibres (which are 3 to 5 times brighter than cracked optical fibres) are grouped into cables (see table below).



The 2-watt driver has a maximum diameter of 8 mm and length of 5 metres. Beyond this, a 15-watt driver must be used which has a maximum length of 15 metres with a sheath or 20 metres in span with 2 sheaths. (Likewise for the 2-watt driver.)

N.B. The 15-watt driver can also power smaller diameters and be monochrome (upon request).

Our new light-emitting technologies

will help you stand out visually

from the crowd in modern, unusual and innovative ways.

Glowing fabrics woven from fibre optics.

We offer the brightest side glow optical fibre on the market.



Ø fiber diffuser and number

2 or 15-watt drivers with different temperatures to be specified (2700K warm white up to 6500K cold white), or colours (amber, red, blue, green) also to be specified.

The 15-watt RGB driver is pre-equipped with a DMX plug.

An infrared or HF (High Frequency) remote control to adjust the luminous intensity and vary the colour texture is available as an option. The maximum emission range is 15 metres. (See table below.)

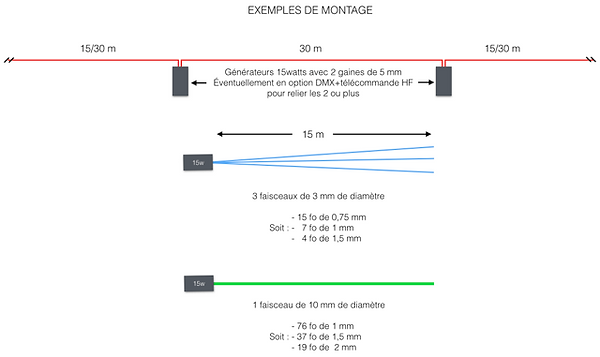

Mounting examples: fiber optic diffuser
Fiber optic lighting: 15W generator
Generator 15W LED DMX or DALI

Generator 15W LED DMX or DALI

15W LED generator with infrared

15W LED generator with infrared

15W RGB and monochrome generator

15W RGB and monochrome generator

LED driver fitted with OSRAM LEDs with a total power of 15W.

The aluminium casing serves as a heat sink.

Silent operation, no fan units.

LED lifespan of over 30,000 hours.

Precise colour adjustment (for RGB versions).

Maximum permissible optic diameter: 10 mm.

Surface illumination of a 7 mm side glow bundle (white monochrome version 4500°): 1900 lux

Dimensions (mm): D 250/ L 105/ H 60

Weight: 0.9 Kg



Two versions are fitted with red, green and blue LEDs with colour adjustment either via infrared remote control (G-LEDs IR RGB model) or DMX signal (G-LEDs DMX RGB model).

Other models are fitted with white LEDs, 3000°K, 4500°K or 6500°K, (G-LEDs Multi-White model) or RGB.

Please contact us for any special requests (waterproof models, DALI remote control, etc.).

fiber optic lighting diffusing 2W generator

Miniature 2-watt OSRAM LED driver.

The aluminium casing serves as a heat sink.

Mains-operated power supply unit.

LED lifespan of over 30,000 hours.

Maximum permissible optic diameter: 8 mm.

Surface illumination of a 7 mm side glow bundle: 400 lux

Dimensions (mm): D 80/ L 50/ H 30

Weight: 0.15 Kg.

Standard colours: red, green, blue, warm white 3000°K, neutral white 4500°K or cold white 6500°K.

fiber optic lighting

Two versions are fitted with red, green and blue LEDs with colour adjustment either via infrared remote control (G-LEDs IR RGB model) or DMX signal (G-LEDs DMX RGB model).

Other models are fitted with white LEDs, 3000°K, 4500°K or 6500°K, (G-LEDs Multi-White model or RGB).

Please contact us for any special requests (waterproof models, DALI remote control, etc.).

POWER SUPPLY

Click to enlarge pictures



USB battery
Power Supply
Power Supply
DMX Cable
COLLECTOR, SHEATH TRANSPARENT,OPAQUE or COLOUR

Fibre optic sheath & collector
Fibre optic sheath

Click on picture to see catalogue

Our new light-emitting technologies

will help you stand out visually

from the crowd in modern, unusual and innovative ways.



SIDE GLOW OPTICAL FIBRE
